The Pick "BX Series" Starch Jet Cooker is designed for use in paper mills and ethanol plants where high volumes of starch can be cooked in-line. The generous flow-through design assures negligible pressure drop in the slurry, and provides thorough cooking at a precisely controlled temperature.
The low velocity design minimizes mechanical shear of the starch granules... an important consideration for cooking most cationic starches.
These heaters can also perform "double duty." They are often used to pre-heat water which is then blended with the starch powder to form the initial slurry. The slurry is then pumped back through the same heater for final cooking.
These compact, non-plugging BX Starch Jet Cookers are available to process flow rates in excess of 1000 GPM.
Application Data Forms & Brochure Downloads
Need a quote for a Pick Starch Cooker? Save time by submitting an application data sheet. Just looking for additional information on our products? Download our product specific brochures.
Submit Application Data Sheet
Download Pick Starch Cooker Brochure
Download Pick Steam Injection Heater Brochure
Need a Replacement Part or Manual?
Request Replacement Parts
Contact us to order the parts you need to keep your Pick Heater up and running.
Replacement Parts Request
Request a Manual
Contact us to request a copy of the Service and Installation Manual for your Pick Heater.
Manual Request
Have a Question or Need More Information?
We’re committed to providing the best customer support before and after the sale with a team of factory sales engineers that are recognized experts in the industry. They’re ready to put that expertise to work for you.
Contact Us
Typical Applications Include:
The unique design of the Pick BX Starch Jet Cooker offers key advantages over other high-velocity venturi devices.
Low Pressure Drop
Starch flows through the heater without obstruction. This results in negligible pressure drop when handling high viscosity formulations.
Low Noise
Noise generation is significantly lower and pipe vibration virtually eliminated.
Non-Shearing
Non-shearing action provides uniform product consistency
Low Velocity Mixing
This provides a “thorough cook” of starch granules yielding a better cooked product.
The Pick Heater is an engineered product and heater selection is primarily based on Steam Demand.
For preliminary heater selection use the following Sizing Formula. Next match the liquid flow rate to the appropriate pipe size. The selection should be verified by your local Pick Heater Rep or a Factory Sales Engineer.
Please contact us with questions.
Sizing Formula:
Steam Demand
(lb/hr)= 0.43 x flow(GPM) x ∆ T (ºF)
or
(kg/hr) = 0.092 x flow(LPM) x ∆ T (ºC)
Example: 200 GPM x 50ºF temperature rise x 0.43 = 4,300 lb/hr of steam. You would require a 6X50-3BX which has a maximum rated steam capacity of 5,000 lb/hr, and a maximum water flow rate of 500 GPM with welded flanged connections.

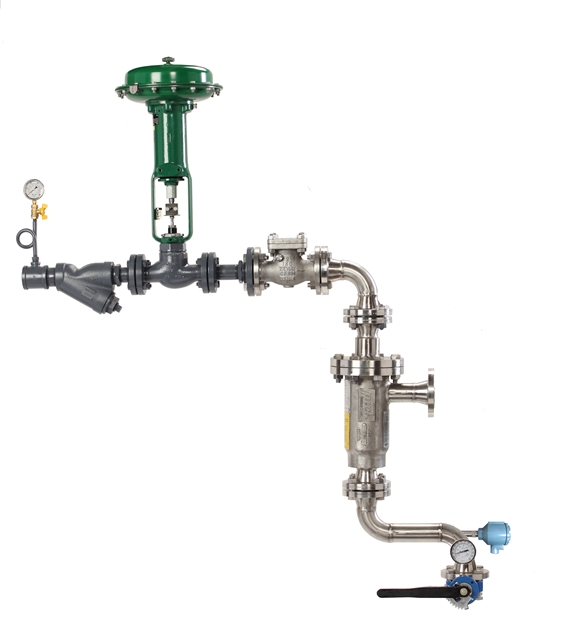

Steam Injection Constant Flow Starch Cooker
BX Starch Jet Cooker Technical Specifications
Heaters are manufactured in Carbon Steel or 316SS. Other alloys/materials available upon request. Liquid and steam piping is available in ANSI/DN Flanged construction.
Custom Systems

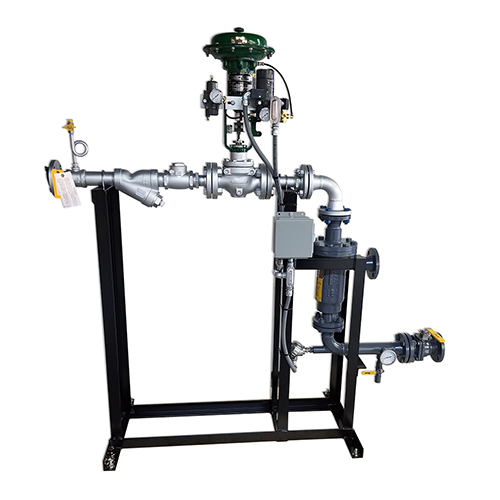

Pick Pre-Packaged Hot Water sets are custom designed to meet process industry needs effectively and efficiently.
